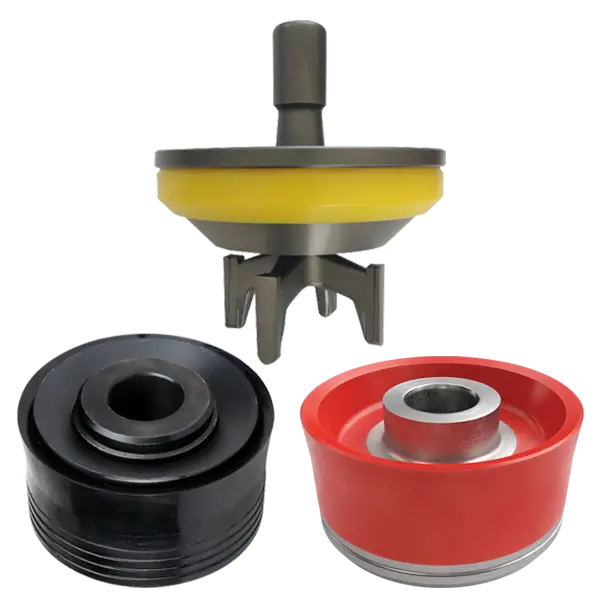

Mud Pump Accessories – Wear, Acid, Alkali, and Corrosion Resistant

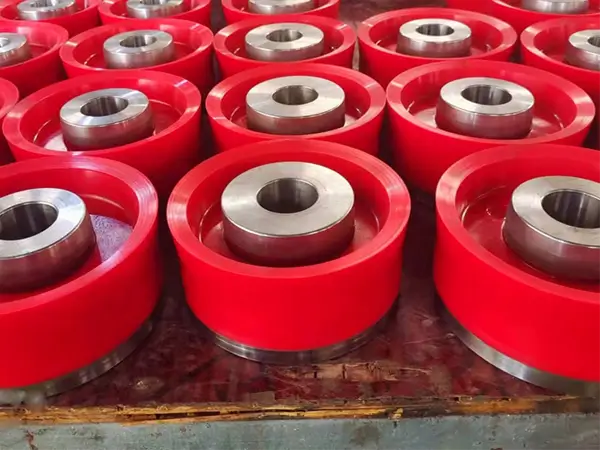

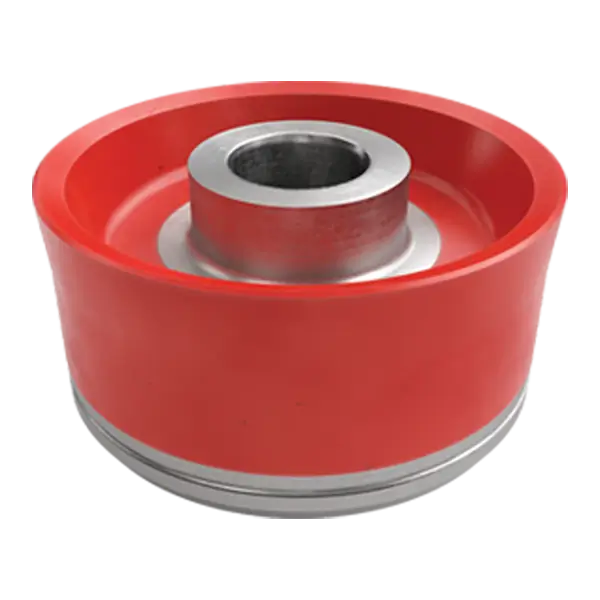

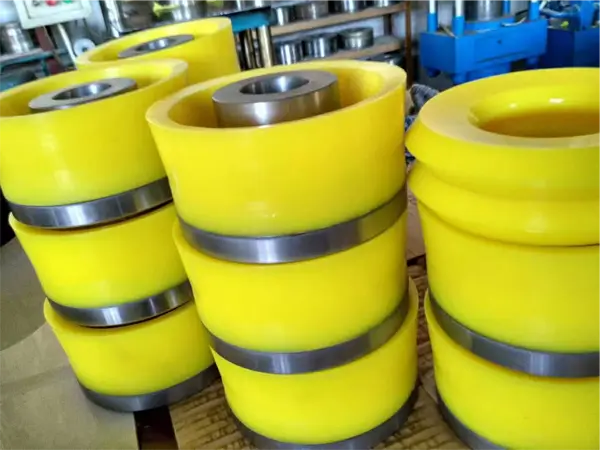

Polyurethane Bonded Pistons

MPA-02-PBP

• Resistant to acid, alkali, and salt corrosion
• Resistant to medium concentrations of hydrogen sulfide
• High wear resistance
• Suitable operating conditions: pump pressure ≤ 25 MPa (3625 psi); temperature range: -20 °C to 100 °C.
• Available models (compatible piston cylinder dimensions):
  • Ø120, Ø130, Ø140, Ø150, Ø160, Ø170, Ø180, Ø190 (unit: mm)
  • Ø4", Ø4-1/2", Ø5", Ø5-1/2", Ø6", Ø6-1/4", Ø6-1/2", Ø6-3/4", Ø7", Ø7-1/2" (unit: inch)

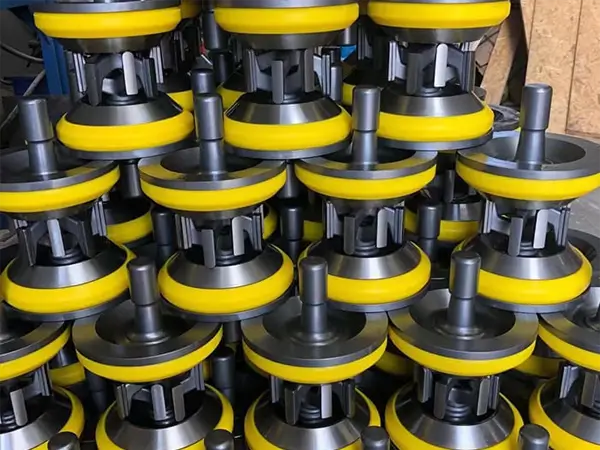

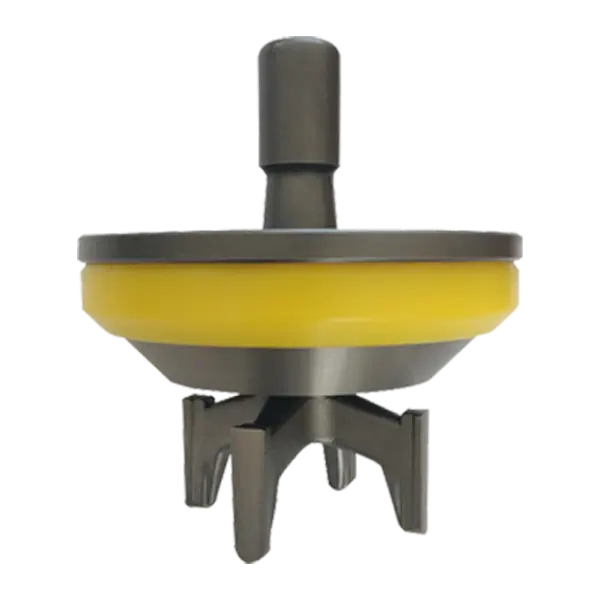

Mud Pump Valves and Seats

MPA-03-VS

• Manufactured from high-quality polyurethane material.
• Designed to withstand the most demanding drilling environments, with high pressure and high temperature resistance.
• Excellent wear resistance, sealing surface integrity, combined with chemical-resistant polyurethane, ensure extended operational lifespan.
• Fully interchangeable with other major industry-standard brands, offering superior compatibility and versatility.
• Available models: 6# and 7#.
