Cementing Baskets – 4-1/2" to 20" Sizes Ranges

Cementing baskets are normally installed on the casing, tubing and liner strings above the weak formation to protect weak formations from hydrostatic pressure exerted by the weight of cement columns. They can also be used in single or multistage cement jobs. The cementing basket allow cement to flow in an upward direction and hold the weight of the cement column once cementing operation ceases.

Contact Us More Information

Three types of cementing baskets on white background.

Categories

Each cementing basket comprises of high strength metal bows and metal overlapping fins or canvas liners. They are available in hinged and slip-on configuration and should be installed over stop collar to prevent axial movement

CB-01-SO
CB-02-HC

Slip-On Cementing Baskets

CB-01-SO

Slip-On Cementing Baskets

Slip on cementing basket is made of reinforced steel ribs on the seamless end collars. It is available in canvas cementing and overlapping metal fins. The structure is simple and can defend leak effectively.

CB-01-SOC

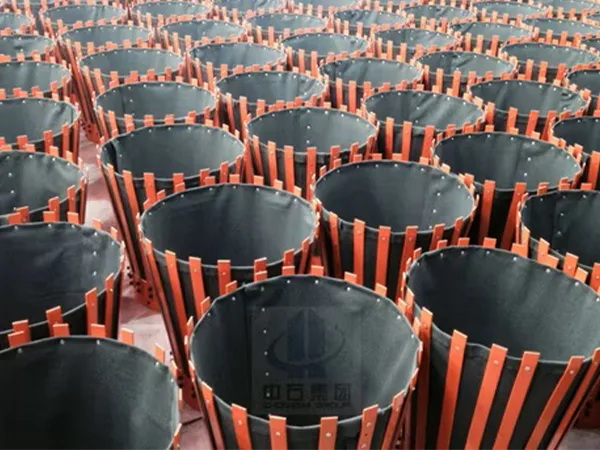

Canvas liner slip-on cementing basket

A slip-on cementing baskets with overlapping metal fins.

CB-01-SOM

Metal fins slip-on cementing basket

Performance features

Can be used with relevant small casing.
Not infected by the temperature and causticity liquid.
Can be expanded or contracted as needed and can be rotated or reciprocated.
Available in 4-1/2" to 20" sizes.
Special sizes are also available.

Hinged Cementing Baskets

CB-02-HC

Hinged Cementing Baskets

CB-02-HC

The hinged welded cement baskets is used in situations where a weak formation is required in helping a cement column.

They consist of reinforced steel ribs welded to the hinged end collars and overlapping metal fins, which provide flexibility and fluid passage to provide maximum strength and uniformity during cementing operations.

Performance features

Reinforced steel ribs are hardened and tempered.
Has the ability to accommodate much larger than nominal hole sizes.
Available with welded and non-welded convex shape bows.
It is run on casing or liners above weak or porous formations to provide protection.
Overlapping metal fins provide flexibility and fluid passage.
Hinged design make it easy to install and replace.
Available in 4-1/2" to 20" sizes.
Special sizes are also available.

Specifications

Casing Size	No.of Bow	Total L.	O.D.	O.D.	Min Hole
inch		inch	inch	mm	inch
4-1/2	10	24-1/2	12-1/2	317.5	6
5	10	24-1/2	13	342.9	6
5-1/2	12	24-1/2	13-1/2	342.9	7-1/4
6-5/8	12	24-1/2	14-5/8	371.5	8-3/8
7	14	24-1/2	15	381.0	8-3/8
7-5/8	14	24-1/2	15-5/8	396.9	9-1/2
8-5/8	16	24-1/2	16-5/8	422.3	10-5/8
9-5/8	18	24-1/2	17-5/8	447.7	11-5/8
10-3/4	18	24-1/2	18-3/4	476.3	12-3/4
11-3/4	20	24-1/2	19-3/4	501.7	13-3/4
11-3/8	24	24-1/2	21-3/8	542.9	15-1/2
16	28	24-1/2	24	609.6	18
18-5/8	34	24-1/2	26-5/8	676.3	20-5/8
